Product Details

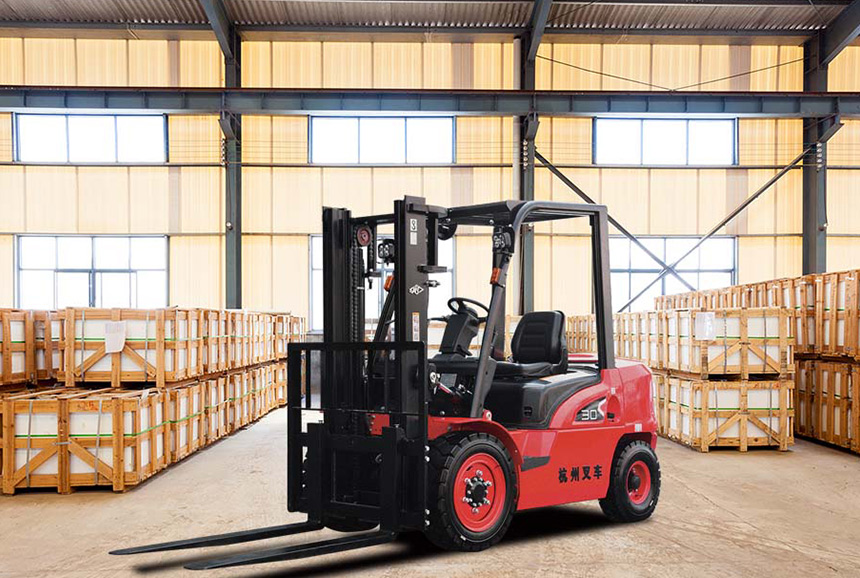

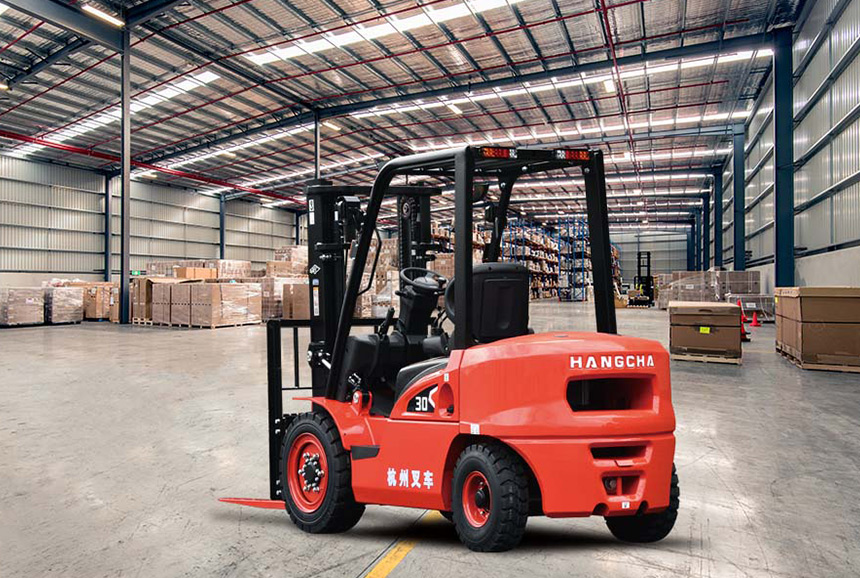

| R series 3.0t forklift specification | ||||
| Distinguishing mark | 1.1 | Manufacturer | HANGCHA GROUP CO.,LTD | |
| 1.2 | Manufacturer's type designation | CPCD35N-RG2 | ||
| 1.3 | Drive: electric (battery or mains), diesel, petrol, fuel gas | Diesel | ||
| 1.5 | Rated capacity/rated load | Q (kg) | 3500 | |
| 1.6 | Load centre distance | c (mm) | 500 | |
| 1.8 | Load distance, centre of drive axle to fork | x (mm) | 485 | |
| Rear overhang | mm | 555 | ||
| 1.9 | Wheelbase | y (mm) | 1760 | |
| Weight | 2.1 | Service Weight | kg | 4555 |
| 2.2 | Axle loading, laden front/rear | kg | 7195/860 | |
| 2.3 | Axle loading, unladen front/rear | kg | 1890/2665 | |
| Tyres, chassis | 3.2 | Tyre size, front | 28x9-15-14PR | |
| 3.3 | Tyre size, rear | 6.50-10-10PR | ||
| 3.6 | Tread, front | b 10 (mm) | 1005 | |
| 3.7 | Tread, rear | b 11 (mm) | 973.5 | |
| Dimensions | 4.1 | Tilt of mast/fork carriage forward/backward | α/β(°) | 6/12 |
| 4.2 | Height, mast lowered | h 1 (mm) | 2160 | |
| 4.3 | Free lift | h 2 (mm) | 150 | |
| 4.4 | Lift | h 3 (mm) | 3000 | |
| 4.5 | Height, mast extended | h 4 (mm) | 4140 | |
| 4.7 | Height of overhead guard （cabin） | h 6 (mm) | 2170 (2230*) | |
| 4.2 | Length to face of forks | l 2 (mm) | 2800 | |
| 4.21 | Overall width | b 1 (mm) | 1225 | |
| 4.22 | Fork dimensions ISO 2331 | s/e/l (mm) | 1070x122x50 | |
| 4.31 | Ground clearance, laden, below mast | m 1 (mm) | 130 | |
| 4.32 | Ground clearance, centre of wheelbase | m 2 (mm) | 175 | |
| 4.35 | Turning radius | Wa (mm) | 2415 | |
| "Min. right angle stacking aisle width (Add load length and clearance)" | mm | 2900 | ||
| Performance data | 5.1 | Travel speed, laden/unladen | km/h | -/20 |
| 5.2 | Lift speed, laden/unladen | m/s | 0.360/- | |
| 5.3 | Lowering speed, laden/unladen | m/s | 0.500/- | |
| 5.5 | Drawbar pull, laden/unladen | N | 20300/- | |
| 5.7 | Gradeability, laden/unladen | % | 15/- | |
| combustion-engine | 7.1 | Engine manufacturer/type | XINCHAI/ C490BPG | |
| Emission STD | ||||
| 7.2 | Engine power according to DIN ISO 1585 | kw | 40 | |
| 7.3 | Rated speed | min | 2650 | |
| 7.4 | Number of cylinders/displacement | (-)/(cm ) | 4/2670 | |
| 7.10 | Battery voltage/nominal capacity | V/Ah | 12/90 | |
| Rated torque | N·m/r/min | 160/1800-2000 | ||
| Bore x stroke | mm | 90x105 | ||
| Transmissions Manufacturer | CHINA | |||
| Transmissions Type | Powershift | |||
| Stage FWD/RVS | 1/1 | |||
| Addition data | 10.1 | Operating pressure for attachments | bar | 175 |
| 10.4 | Fuel tank capacity | liter | 70 | |
