Product Details

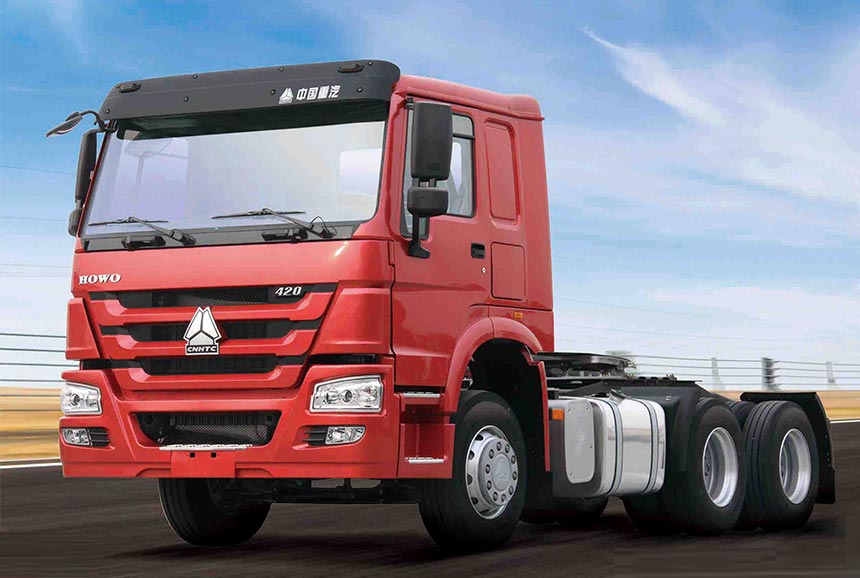

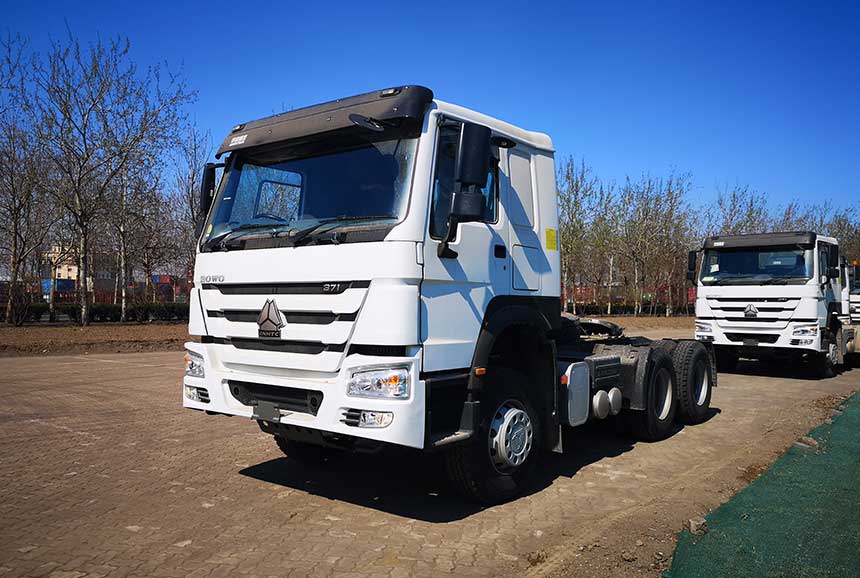

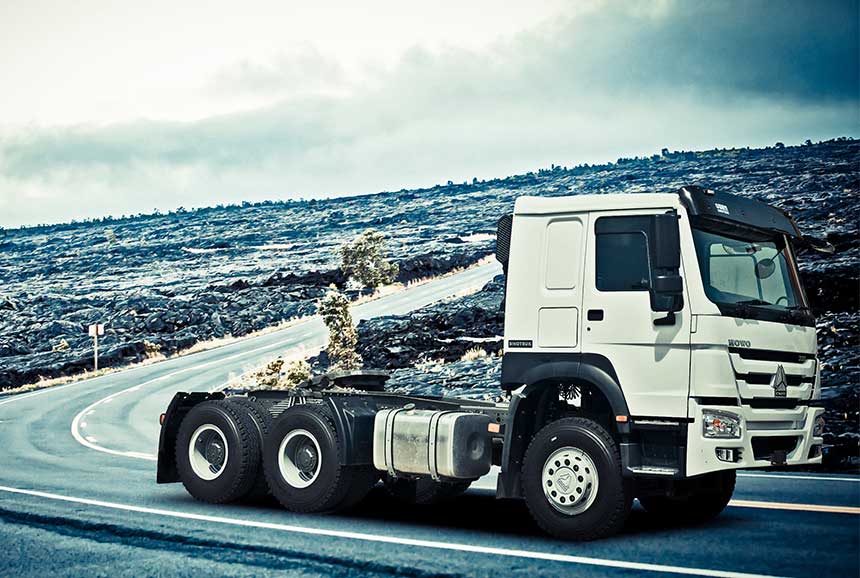

| Model | SINOTRUK HOWO 6X4 TRACTORZZ4257S3241W | |
| Engine | Make: SINOTRUK Model: WD615.47, Euro II emission standard 4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turbo-charging & intercooling Maximum output: 371 HP (273 Kw) @ 2200 rpm according to DIN Maximum torque: 1500 Nm @ 1100 - 1600 rpm Bore: 126mm Stroke: 130mm Displacement: 9.726L Compression ratio: 17:1 Specific fuel consumption: 195g/kWh Engine oil filling quantity: 23L Cooling system filling quantity (long-term filling): 40L Thermostat opening temperature: 71oC Twin cylinder air compressor. Rigid fan Option: WD615.69 | |
| Clutch | Single plate dry diaphragm spring clutch, diameter 430(B) mm, hydraulically operating with air assistance | |
| Transmission | HW19710, 10 forward and 2 reverse Ratio:14.28 10.62 7.87 5.88 4.38 3.72 2.43 1.80 1.34 1.00 13.91/3.18(R) | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | HF9. Drum brake. Steering with double T-cross section | |
| Rear Axle | HC16, drive through reduction and planetary reduction. Ratio: 4.42 | |
| Chassis | Frame: U-profile parallel ladder, all cold riveted cross members Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer Fuel tank: 400 L Spare wheel carrier: with one spare tire Option: Fuel tank 600L | |
| Steering | ZF8098, hydraulic steering with power assistance | |
| Brake | Service brake: dual circuit compressed air brake Parking brake (Emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS | |
| Tyre | Tyre:12R22.5 10+1 PCS Option: 315/80R22.5 | |
| Cab | Long cab with one berth, all steel forward control, 55° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, 4-point support fully floating suspension and shock absorber, air conditioner, safety belt. | |
| Electrics | Operating voltage: 24V, negative grounded; Starter: 24V, 5.4KW Alternator: 3-phrase, 28V, 1540W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp | |
| Dimensions in mm | Wheelbase Front wheel track Rear wheel track Front overhang Rear overhang Approach angle/ Departure angle Overall dimensions | 3225+1350,3200+1400 2022 1830 1500 700 16o / 70o 6800 X 2496 X 3100 |
| Weight in kg | Dead weight Gross vehicle weight Front axle loading capacity Rear axle loading capacity | 9210 32000 9000 16000 X 2 |
| Performance | Maximum speed Maximum grade ability Minimum ground clearance Minimum turning circle | 90 km/h 35% 294 mm 18.5 m |
Weights, dimensions and features are given for reference and may be modified according to the choice of certain options. The manufacturer reserves the right to modify the above specifications without prior notification.
