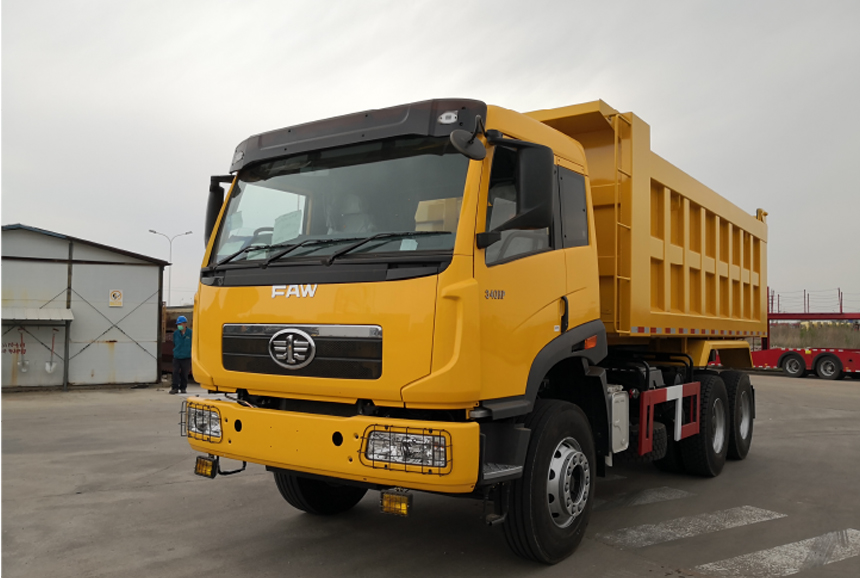

Product Details
PARAMETERS
MASS
Manufacturer's GVW (kg) 39500
Curb Weight of Vehicle (kg) 14000
Payload (kg) 25500
Max. Axle Load Disitribution
Front/Rear (kg) 7500/ 2x16000
DIMENSIONS
Length (mm) 8354
Width (mm) 2500
Height (mm) 3335
Wheel Base (mm) 3700+1350
Wheel Track Front /Rear (mm) 2025/1880
Overhang Front /Rear (mm) 1493/1726
PERFORMANCE
Max. Speed (km/h) 73
Max. Grade Ability (%) 40
Approach Angle (°) 26
Departure Angle (°) 34
Parking Brake Grade Angle (%) 20
Min. Ground Clearance (mm) 245
Min. Steering Diameter (m) 18
Braking Distance(from 30km/h) (m) ≤10
Sliding Distance(from 50km/h) (m) 900
Fuel Consumption (L/100km) 40
Fuel Tank Capacity (L) 400
STRUCTURES
CAB
Category New J5P - Flat roof/ Single row/ Single sleeper
Seat 2 seats
FRAME
Structures Side rails/punching/riveted
Main Rail Section (mm) 320 x 90 x (8+8)
Auxiliary Rail Section (mm) 304 x 80 x 8
Suspension Type Leaf springs
BODY
Type Lifting mechanism Rectangle Hydraulic pressure single cylinder and middle lifting
Material (mm) Dimension (mm) 850 High Strength Steel Floor (6) side board(4) 5600 x 2300 x 1500
CONFIGURATION
ENGINE
Model WEICHAI WP10.340E32
Type 6 in-line/water cooling/ EGR/Turbocharged/Air intercooling
Displacement (mL) 9726 250/2200
Max Output Power (Kw/rpm) 250/2200
Max Torque (Nm/(r/min)) 1350/(1200-1600)
Horsepower (Ps) 340
Emission Level EURO Ⅱ
TRANSMISSION
Model FAST RTD-11509C
Type Twin countershaft /synchromesh /center distance increased
Forward Shifts Ratio i1=12.42; i2=8.30; i3=6.08; i4=4.54;i5=3.36; i6=2.47; i7=1.81; i8=1.35;i9=1.00
Reverse Shifts Ratio Ri1=12.99;
CLUTCH
Driven Plate Dia. EATONф430
Type Dry type,Single plate,hydraulic controlled and air auxiliary power
STEERING
Type Recycle ball type, Hydraulic power steering
Ratio 22.2:1
REAR AXLE
Model ф300 Casting hub reduction
Type Doublereduction/Rated load 16000 kg/Max. output torque 50000N.m
Reduction Ratio 5.921
BRAKE
Driving Brake Dual circuit, air pressure brake, with brake condenser
Parking Brake Spring energy storage type
Auxiliary Brake Exhaust brake
WHEEL
Rim 9.00×22.5
Tire Model CHAOYANG 12.00R2018
Tire Type Radial and Tubeless
MISCELLANEOUS
Oil bath air filter Maintenance-free batteries (CAMEL)
Operating soft shaft (TUTHILL) All Valves (WABCO)
Full LCD dashboard Clutch booster (WABCO)
3 in 1 key All steel front wall
Optional: A/C, Double Coin tires, ABS, etc.
