Product Details
PARAMETERS
MASS
Curb Weight of Chassis (kg) 8805
Max. Axle Load Distribution
(Front/ kg) 8000
(Rear/ kg) 13000*2
Max. Drawing Capacity (kg) 46260
Max. Load Capacity at Fifth Wheel (kg) 20000
DIMENSIONS
Overall Dimensions - L*W*H (mm)
Wheel Base (mm) 3300+1350
Wheel Track - Front/ Rear (mm) 2020/1830
Overhang - Front/ Rear (mm) 1495/793
Front Turning Radius - R1 (mm) 2550
Rear Clearance Radius - R2 (mm) 2150
5th Wheel Height - unladen (mm) 1295
PERFORMANCE
Max. Speed (km/h) 108
Max. Grade Ability (%) 32
Approach Angle (°) 17
Departure Angle (°) 40
Parking Brake Grade Angle (%) 12
Min. Ground Clearance (mm) 222
Min. Steering Radius (m) 15
Braking Distance - GCW 50t at 30km/h (m)
Sliding Distance - GCW 50t at 50km/h (m)
Fuel Consumption - GCW 50t (L/100km)
Fuel Tank Capacity (L) 500 + 500
STRUCTURES
CAB

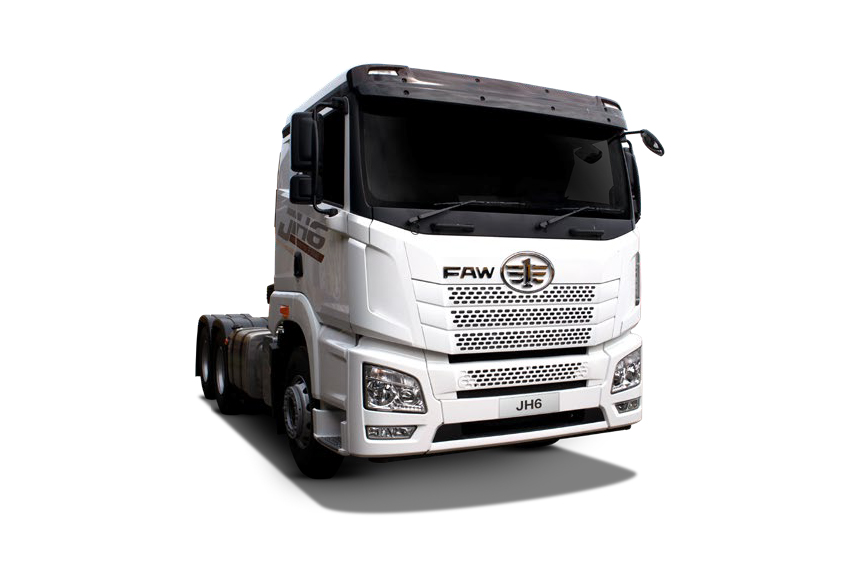

Category JH6 - Flat roof/ Full floating/Single sleeper/ With sunroof/With Auto AC/
4 Points air suspension/ Electric lift, windows and side mirror/
Multifunctional steering wheel
Seats 2 (Air seat for driver)
FRAME
Structures Side rails/ Punching/ Riveted
Main Rail Section (mm) 300*80*(8+5)
Suspension Type 3/4 Leaf spring
BODY
Fifth Wheel 2 inch, JOST
CONFIGURATION
ENGINE
Model FAW CA6DM2-39
Type 6 in-line/ Water-cooling/ Four stroke/ Air inter-cooling/ Direct injection/ 4 valves in 1 cyliner
Displacement (L) 11.04
Max Output Power (kw @ rpm) 290/1900
Max Torque (Nm @ (r/min)) 1750/1200~1400
Horsepower (Ps) 390
Emission Level Euro Ⅱ
TRANSMISSION
Model FAW CA12TAX210M/ 12F & 2R
Type Overdrive/ Twin countershaft
Forward Gear Ratio i1=12.189; i2=9.459; i3=7.368; i4=5.78;i5=4.475; i6=3.502; i7=2.724; i8=2.114;i9=1.646; i10=1.293; i11=1; i12=0.783
Reverse Gear Ratio Ri1=11.816; Ri2=2.647
CLUTCH
Model EATONФ430
Type Dry type/ Single plate/ Cast aluminum pump/ Hydraulic controlled and air auxiliary power/ WABCO booster
STEERING
Type TRW/ Recycle ball type/ Hydraulic power assisted steering
Ratio 23:1
REAR AXLE
Model 457 stamping-weld axles
Type Single reduction/ Max. output torque 40000Nm
Reduction Ratio 4.444
BRAKE
Driving Brake Dual circuit/ Air pressure brake/ With brake condenser
Parking Brake Manual valve spring cylinder storage brake
Auxiliary Brake Engine brake/ Exhaust brake
WHEEL
Tire Model 12R22.5-18
Tire Rim 9.00×22.5
Tire Type Radial/ Tubeless/ With one spare tire
OTHER ADVANTAGES
Valves (all WABCO) Guard plate for water tank
All steel front bumper Long service interval primary filter
Maintenance-free batteries (CAMEL) GRAMMER seat for driver
Aluminum alloy air cylinder
OPTIONAL
Air deflector/ ABS/ PTO/ etc.
