Product Details
PARAMETERS
MASS
GVW (kg) 7000
Curb Weight of Vehicle (kg) 2360
Payload (kg) 4640
Max. Axle Load Disitribution
Front/Rear (kg) 2400/ 5000
DIMENSIONS
Length (mm) 5998
Width (mm) 2150
Height (mm) 2950
Wheel Base (mm) 3260
Wheel Track Front /Rear (mm) 1650/1540
Overhang Front /Rear (mm) 1150/1588
PERFORMANCE
Max. Speed (km/h) 100
Max. Grade Ability (%) 24
Approach Angle (°) 18
Departure Angle (°) 14
Parking Brake Grade Angle (%) 18
Min. Ground Clearance (mm) 200
Min. Steering Diameter (m) 13.1
Braking Distance(from 30km/h) (m) ≤10
Sliding Distance(from 50km/h) (m) ≥1050
Fuel Consumption (L/100km) 11
Fuel Tank Capacity (L) 100
STRUCTURES
CAB

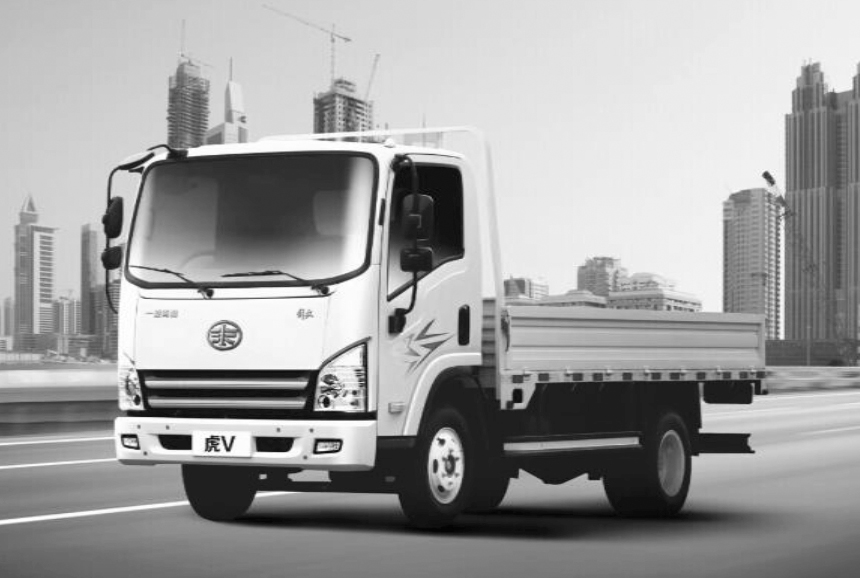

Category Tiger VH - Flat roof / Single row / Sunroof
Seat 3 seats
FRAME
Structures Side rails/punching/riveted
Main Rail Section (mm) 200×65×5
Auxiliary Rail Section (mm -
Suspension Type Leaf springs
BODY
Type Van with rear double door
Baseboard thickness (mm) 3
Sideboard thickness (mm) 1.5
Dimension (LxWxH) (mm) 4200 x 2000 x 400
CONFIGURATION
ENGINE
Model FAW DACHAI CA498E3-12
Type 4 in-line/water cooling/EGR/ Turbocharged/Air intercooling
Displacement (mL) 3168
Max Output Power (Kw/rpm) 90/3200
Max Torque (Nm/(r/min)) 320/2100
Horsepower (HP) 120HP
Emission Level EURO II
TRANSMISSION
Model WLY 5-35
Type Single countershaft/ overdrive /
Forward Shifts Ratio i1=5.057; i2=2.609; i3=1.565;i4=1.000; i5=0.764
Reverse Shifts Ratio Ri1=5.118;
CLUTCH
Driven Plate Dia. ф300
Type Dry type,Single plate,hydraulic controlled and air auxiliary power
STEERING
Type Recycle ball type, Hydraulic power steering
Ratio 17.76:1
REAR AXLE
Model 1058 single reduction
Type Single reduction/Rated load 5000 kg /Max. output torque 9000N.m
Reduction Ratio 5.571
BRAKE
Driving Brake Dual circuit, air pressure brake
Parking Brake Spring energy storage type
Auxiliary Brake Exhaust brake
WHEEL
Rim 5.50-16
Tire Model Double Coin 7.00R16-12
Tire Type Radial with Tube
MISCELLANEOUS
Clutch booster (WABCO) Maintenance-free batteries (GLOBAL)
Clutch(Imported) Operating soft shaft (TUTHILL)
Increasing the radiator
